Waterproof

Description

Inorganic coatings mainly use inorganic binder silica sol as the film-forming material. The particle size of silica sol is small enough to penetrate into the crevices. Silica sol is a mineral in nature, free from harmful substances, non-toxic, odorless and non-irritating coating material. It is harmless to the environment and human health.

Features

  1. Film formation at room temperature
  2. Completely water-resistant, soaked in water will not turn white
  3. High weather resistance
  4. Crystal penetration waterproof technology
  5. Fire resistance up to 800 degrees
  6. UV resistance and heat insulation

Specification

Item EST-M609-B
color transparent
viscosity (cp) <100 CPS (25℃)
Specific gravity 1±0.05 (25℃)

Process condition

Item EST-M609-B
Substrate pre-treatment Please remove the cement paint,
surface pulverization or cement
aging layer of the old expanded pipe first
Solution mixing NA
Solution temperature (°C) RT
Substrate temperature (°C) RT~60
Coating Spray/Dip/Roll
Curing temperature (°C) RT 24~48 hr

Performance

Item Test requirement value Test Method
Nano test Nanomolecular particles below 50 nm Electronic SEM instrument test
Washable (500 times) no crack 10757. Materials: metal plate for testing
Pollution resistance (23℃ 13 hours )
Black tea ,soy sauce, shoe polish , crayon ,
lipstick, spray paint, food coloring ,coffee ,
edible vegetable oil, hardened oil, tomato juice
no change 10757. Materials: metal plate for testing
Adhesion (square method. 1mm/100) no change 10757. Materials: metal plate for testing
Resistance to boiling water (10 mins) no change 10757. Materials: metal plate for testing
Water resistance (deionized water. 23℃ for 168 hours) No abnormality  10757. Materials: metal plate for testing
chemical resistance { 23℃ for 24H) No abnormality  10757. Materials: metal plate for testing
40% sulfuric acid PASS 10757. Materials: metal plate for testing
10% sodium hydroxide PASS 10757 . Materials : metal plate for testing
Weathering test ( UVA-340 124 hours) No crack change ASTM-G154-12
Class I Flame Resistant PASS 14705-1(2013)
Salt spray resistance test 4000 H No blistering and peeling ASTM Bl 17-16
REACH PASS Reference RSTS-EE-SVHS-037
RoHs PASS Reference IEC 62321-5:2013
halogen PASS Analysed by bn chromatography with reference to BS EN 14582:2016


Production structure

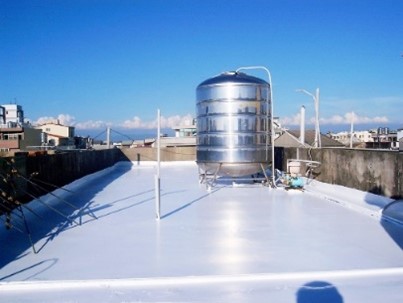

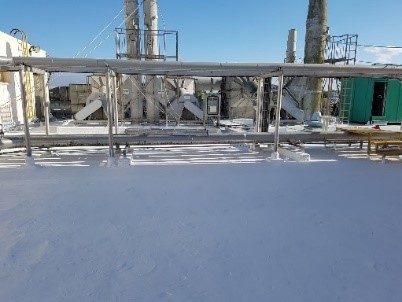

Application
